無油式空壓機 ZT (ZR)

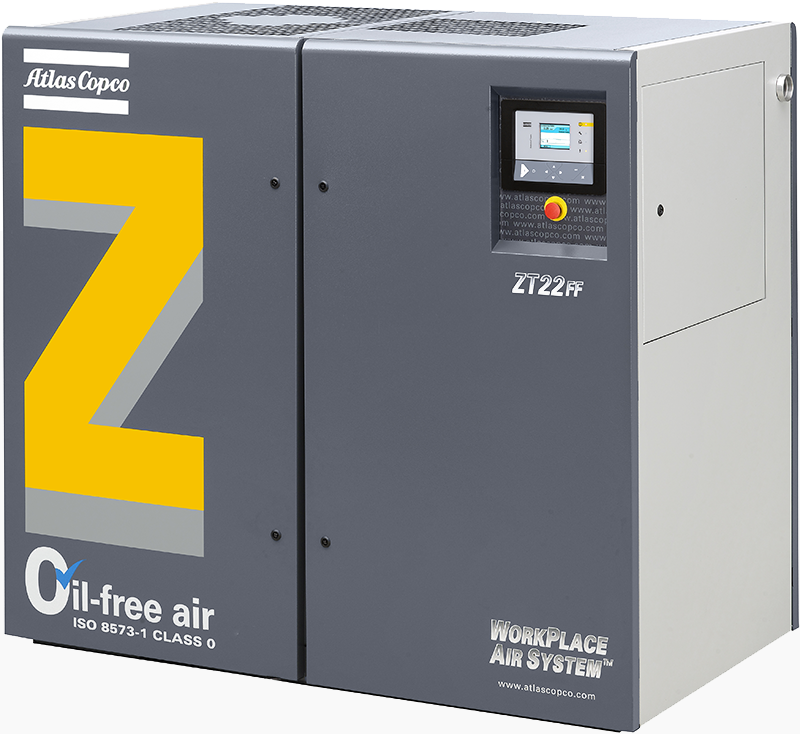

ZR and ZT oil-free compressors up close





ZR and ZT oil-free compressors up close



With our global installed base, we can make 60 years of innovation and experience in oil-less air technology for you. No matter the conditions, our ZR and ZT produce certified oil-free air that protects all your critical processes and products. The difference? The ZR is water-cooled, the ZT is air-cooled. With pressure levels ranging from 3.5 up to 13 bar, we maximize your energy savings with a choice of rotary tooth or screw technologies.

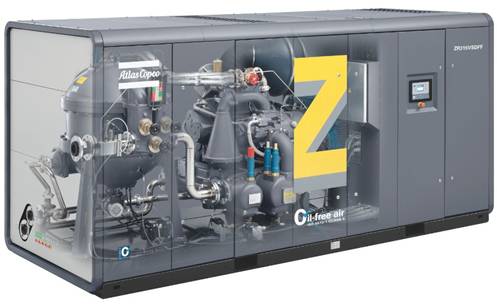

Full Feature compressor

A compact, all-in-one quality air solution

ZR and ZT rotary screw and tooth oil-free air compressors are available as Full Feature package with:

  • integrated dryer for reduced installation space
  • variable speed drive (VSD) to minimize your energy costs.



Technical specifications

Capacity FAD l/s

19.7 l/s - 2,506 l/s

Capacity FAD

70.92 m³/h - 9,021.6 m³/h

Working pressure

3.5 bar(e) - 13 bar(e)

Installed motor power

15 kW - 900 kW
